Grading and drainage punish the wrong tool. A bright indoor green cross-line that looks perfect on drywall will vanish in noon sun the moment you try to set a swale, pad, or French drain. Choosing the best laser level for grading and drainage means prioritizing a rotating beam, a receiver on a grade rod, a stiff tripod, and enough accuracy to keep water moving where you want it—not the flashiest floor-tile laser on Amazon.
This guide compares ten rotary and layout lasers for dirt work, groundworks, leveling ground, yard slopes, and outdoor elevations. Three picks lead the pack: the Topcon RL-H5A for serious site work, a complete green rotary kit when you need tripod and rod in one box, and the Klein Tools 93RLS when a rechargeable green rotary fits your crew. Use the comparison table first, then read the reviews for honest limits on each kit.
Top 3 Picks for Grading and Drainage Laser Levels
Topcon RL-H5A with LS-80 Receiver
- Built for grading, excavating, and large outdoor elevations
- Up to 2,600 ft diameter with 1/16 in at 100 ft accuracy
- IP66 housing and H.I. alert if the laser is bumped
Green Rotary Laser Kit (2300 ft)
- Receiver, tripod, and grade rod included for dirt work
- Up to 2300 ft diameter working range with detector
- IP66 sealed rotary for wet and dusty groundworks
Klein Tools 93RLS Rotary Kit
- Green rotary with detector, tripod, and 9 ft grade rod
- Impact sensing pauses the beam if the unit is disturbed
- Up to 24-hour rechargeable runtime for long grading days
Affiliate Disclosure: As an Amazon Associate we earn from qualifying purchases. We earn a commission, at no additional cost to you.
10 Best Laser Levels for Grading and Drainage Compared
Compare range, sealing, and kit completeness before you dig. Specs below focus on outdoor elevation work—receiver range, accuracy class, and whether a grade rod or tripod ships in the box. Confirm current bundle contents on the live Amazon listing; kits change without notice.
- Rotary; 2,600 ft diameter range
- ±1/16 in at 100 ft accuracy
- IP66; LS-80 receiver included
- Green rotary; 2300 ft diameter
- ±1/10 in at 100 ft accuracy
- Tripod + grade rod + receiver
- Green rotary; 1150 ft with detector
- Impact sensing + plumb spot
- Tripod + 9 ft grade rod included
- Rotary; 2,600 ft diameter range
- Manual single-axis slope matching
- LS-80X + NiMH up to 100 hrs
- Red rotary; 2000 ft diameter
- ±1/8 in at 100 ft accuracy
- Tripod + grade rod + IP66
- Red rotary; 2000 ft diameter
- Self-level + slope mode
- 16.4 ft rod + 5.5 ft tripod
- 4×360° green planes + receiver
- Pulse mode up to ~660 ft
- Fine/coarse detector accuracy
- Self-leveling red rotary system
- Class IIIa, ≤5 mW output
- Established site-layout rotary
- Three 360° green planes
- ~100 ft indoor projection
- Compact check tool, not a grader
- Green cross-line ~100 ft indoor
- Pulse mode; receiver separate
- Light DIY kit, not dirt-work primary
We earn a commission, at no additional cost to you.
Detailed Product Reviews
1. Topcon RL-H5A with LS-80
If you need the best laser level for grading and drainage on real dirt work, start with the Topcon RL-H5A and LS-80 receiver. This self-leveling rotary is built for excavating, pads, and outdoor elevations, not picture hanging. Its 4.6 rating and jobsite pedigree match crews who set elevations every week.
- Self-leveling rotary construction laser
- Up to 2,600 ft (800 m) diameter coverage
- ±1/16 inch accuracy at 100 feet
- LS-80 receiver, holder, and carry case
- Purpose-built for grading and excavating
- Long diameter range for large pads and yards
- Tight accuracy for drainage fall decisions
- H.I. alert warns if height of instrument shifts
- Higher investment than import starter kits
- Horizontal rotary focus—not a 4D indoor layout tool
- Grade rod and survey tripod often purchased separately
As a best grading laser level for groundworks, the RL-H5A covers up to a 2,600-foot diameter with roughly 1/16-inch accuracy at 100 feet. Press power, let electronic self-leveling settle within ±5°, and chase the LS-80 on a grade rod across the cut. That workflow is how you level ground without guessing.
IP66 sealing, roughly 100-hour battery life, and the H.I. alert keep elevations trustworthy when rain, dust, or a bumped tripod show up mid-cut. Use a rigid survey tripod, seat the feet firmly, and recheck a hub after any disturbance. Interior remodelers can skip it; dirt and drainage crews should shortlist it first.
Who should buy the Topcon RL-H5A?
Buy it for weekly grading, excavating, and drainage elevations. Skip it if you only need indoor green planes or occasional shelf layout.
We earn a commission, at no additional cost to you.
2. Green Rotary Kit (2300 ft)
Looking for the best laser level for dirt work without assembling a kit from three sellers? This green rotary laser level kit packs a receiver, aluminum tripod, and grade rod for grading and drainage jobs. Its 4.1 rating and IP66 sealing suit homeowners and landscapers leveling ground on residential lots.
- Class II green rotary diode (520 nm, ≤5 mW)
- Up to 2300 ft diameter with receiver
- ±1/10 inch accuracy at 100 feet
- Auto self-leveling within ±5°
- Tripod and grade rod included for day-one dirt work
- Green beam aids mixed-light detector acquisition
- IP66 housing for wet landscaping days
- Strong working diameter for residential yards
- Rating is solid but not Topcon-class prestige
- Import QC varies—field-check accuracy after shipping
- Not a substitute for survey-grade certification needs
For outdoor elevations and yard slopes, the claimed 2300-foot diameter with a detector is the feature that matters more than naked-eye brightness. Self-leveling within ±5° speeds setup on uneven ground, while roughly ±1/10-inch accuracy at 100 feet supports practical drainage fall on driveways, pads, and French drain runs.
Kit completeness is the real value: receiver, tripod, and grade rod mean you can set a benchmark the same day the box arrives. Still verify rod plumb, tighten the head, and run a two-point accuracy check before trusting a critical invert. Choose it for residential dirt work when you want a ready package over a famous logo.
Value vs. pro rotary
You gain tripod, rod, and green convenience. You trade some brand ecosystem depth—fair for many yard and landscaping crews.
We earn a commission, at no additional cost to you.
3. Klein Tools 93RLS
Trades that already trust Klein will find the 93RLS a strong best laser level for groundworks when green rotary visibility and a complete kit matter. The self-leveling kit includes a detector, heavy-duty tripod, and nine-foot grade rod for outdoor elevations. Its 4.4 rating reflects real jobsite usefulness for drainage layout.
- Green Class 3R rotary, ≤5 mW
- Up to 1150 ft range with detector
- Impact sensing pauses if disturbed
- Rechargeable battery up to 24 hours
- Trusted Klein brand support for trades
- Impact sensing protects elevation integrity
- Long rechargeable runtime for grading days
- Horizontal/vertical plus plumb spot versatility
- Shorter max range than 2000–2600 ft rotaries
- Class 3R requires stricter eye-safety habits
- Heavier kit than a pocket cross-line tool
This best laser level for leveling ground pairs an 1150-foot detector range with impact sensing that pauses operation if the unit is bumped. That feature alone helps on busy dirt sites where a loader vibration or a kicked tripod can ruin a pad elevation. Rechargeable power claimed up to 24 hours supports long cut days.
Green rotary coverage plus a plumb spot helps when yard elevations meet a structure, while IP66 sealing handles muddy trench edges. Range tops out around 1150 feet with the detector—plenty for most residential lots, short of sprawling commercial cuts. Treat Class 3R output carefully and recheck after any impact pause.
Impact sensing on dirt sites
A paused laser is cheap insurance against a wrong cut. Recheck your benchmark after any disturbance alert before you resume fill marks.
We earn a commission, at no additional cost to you.

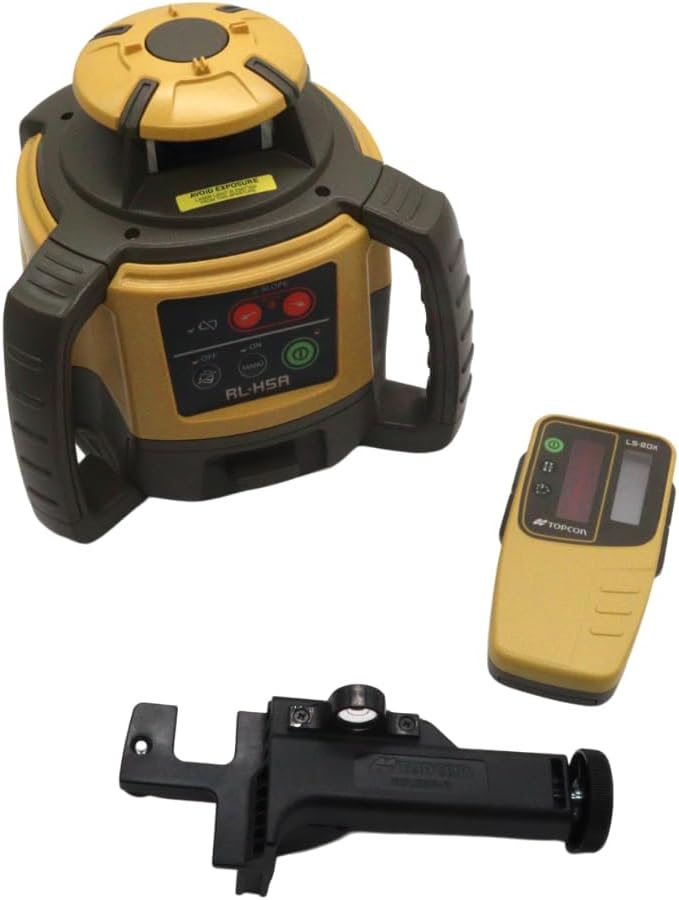

4. Topcon RL-H5A NiMH Kit
When drainage fall is the job, not just flat pads, this Topcon RL-H5A kit with LS-80X and NiMH power is a standout best laser level for drainage. Manual single-axis slope matching lets crews tilt a reference for swales and trench inverts. The 5.0 listing rating underscores how buyers respond to that grading focus.
- RL-H5A rotary; 2,600 ft diameter
- ±1/16 in at 100 ft accuracy
- Manual single-axis slope matching
- LS-80X long-range detector
- Slope matching suited to drainage fall
- LS-80X detector for long outdoor runs
- Rechargeable NiMH with charger included
- Same IP66 toughness as the LS-80 kit
- Premium pricing vs generic rotary bundles
- Single-axis slope is not full dual-grade automation
- Listing rating can reflect smaller review samples
Like its sibling, this best laser level for grading covers up to a 2,600-foot diameter with ±1/16-inch accuracy at 100 feet. Electronic self-leveling within ±5° and automatic re-level after disturbance keep dirt work moving. The LS-80X receiver and long NiMH runtime favor multi-day groundworks without constant battery hunting.
Slope matching is the differentiator for French drains and driveway edges that must move water on purpose. Verify rise over run at multiple stations—slope mode assists, it does not invent the design grade. IP66 toughness and long NiMH runtime favor multi-day groundworks when drainage fall is weekly work.
Slope matching caution
Match one axis, then verify fall at several stations. Do not assume the laser invents the engineer’s percent grade for you.
We earn a commission, at no additional cost to you.
5. 2000 ft Red Rotary Kit
Homeowners and small landscaping crews often want the best laser level for leveling ground without a Topcon invoice. This red rotary kit answers with a receiver, aluminum tripod, and five-section grade rod aimed at grading and foundation layout. A 4.1 rating and IP66 sealing make it a practical dirt-work starter.
- Red Class II rotary, 635 nm
- ±1/8 in (±0.11u0022) at 100 feet
- Up to 2000 ft diameter with receiver
- ±5° automatic self-leveling
- Full grading kit out of the box
- IP66 housing for wet dirt sites
- Remote control helps when working alone
- Adequate accuracy for many residential grades
- Red beam is harder to glance-check than green
- Accuracy looser than Topcon’s 1/16-inch class
- Brand support and calibration paths vary
As a best laser level for dirt work on residential lots, the 2000-foot diameter range with the included receiver covers most yards and pads. Self-leveling within ±5° reduces setup fiddling on uneven ground, while ±1/8-inch accuracy at 100 feet is workable for driveways, sheds, and basic drainage checks when used carefully.
Remote, target plate, glasses, and case help first-time buyers avoid incomplete kits, but outdoors you still chase the receiver rather than a visible stripe. At ±1/8 inch, establish two control points and mark conservatively on critical inverts. It is an honest residential on-ramp into rotary elevation work.
First-day field check
After shipping, shoot a stake at a measured distance, rotate 180°, and compare. Resolve disagreement before you cut soil.
We earn a commission, at no additional cost to you.
6. Industrial Rotary 2000 ft
Budget site grading often needs a long rod more than a famous logo. This industrial rotary laser level kit targets site grading with a 16.4-foot grade rod, surveying tripod, and receiver for outdoor elevations. Its 3.9 rating is a caution flag, yet the kit shape fits dirt work and drainage layout well.
- Red rotary; ±1/8 in at 100 ft
- Up to 2000 ft diameter with receiver
- Self-level ±5° plus slope mode
- Disturbance alarm if bumped
- Long grade rod helps deeper cuts and fills
- Slope mode for intentional grade work
- Disturbance alarm protects the reference
- IP66 jobsite sealing
- Lower 3.9 rating signals mixed buyer experiences
- Expect more QC variation than premium brands
- Red beam still invisible in harsh sun without receiver
For crews seeking a best laser level for grading on a tighter budget, the 2000-foot diameter range and ±1/8-inch accuracy at 100 feet cover many pads and yard regrades. Self-leveling within ±5°, a disturbance alarm, and slope mode give more field options than a bare indoor cross-line ever will on groundworks.
The long grade rod helps deeper cuts and fills, and slope mode plus a disturbance alarm expand field options. Because the rating sits lower, inspect on arrival and run a careful accuracy check before irreversible excavation. Careful homeowners can make it work; skip it if every commercial site demands Topcon consistency.
Rating context
A high-3s rating often means mixed durability stories. Field-check early and keep packaging until you trust the tool.
We earn a commission, at no additional cost to you.
7. Huepar Pro ZK04CG-LR300
Not every drainage job is pure dirt. Remodelers who grade a patio then layout a screen porch may prefer Huepar’s ZK04CG-LR300 as a flexible best laser level for grading and drainage transitions. The kit includes a receiver for outdoor pulse use up to about 660 feet, plus four green 360° planes.
- 4×360° green planes (two H, two V)
- Receiver pulse mode up to ~660 ft
- Fine ±1/13u0022 and coarse ±1/8u0022 modes
- ±1/13 inch accuracy at 33 ft
- Receiver included for outdoor pulse work
- Four planes help structure and site transitions
- Fine/coarse detector settings match tolerances
- Strong 4.6 rating for a versatile kit
- Not a long-range rotary for sprawling earthwork
- More complex than a simple horizontal grader
- Max detector range needs clear line of sight
This is not the best grading laser level for wide excavating cuts, but it shines when outdoor elevations meet walls, forms, and finishes. Fine and coarse receiver settings let you chase tighter marks for concrete edges or looser marks for rough dirt work. Self-leveling green planes also square the structure after the pad is set.
Use the detector for daylight stations, then switch to visible green planes in shade or indoors after the pad is set. It will not replace a 2000-foot-class rotary on open acreage, but it earns a place when grading a patio and laying out the structure that follows. Buy it for mixed yard-and-building seasons.
Fine vs coarse on the rod
Coarse mode finds the plane quickly in rough dirt. Fine mode is for final form elevations and finish-sensitive marks.
We earn a commission, at no additional cost to you.
8. Johnson 40-6517
Johnson’s 40-6517 remains a recognizable self-leveling rotary laser system for crews who prefer a classic red site tool for grading references. It is not the newest green kit on Amazon, but a 4.2 rating and rotary format keep it relevant for outdoor elevations. Treat it as a traditional alternative in this dirt-work guide.
- Self-leveling red rotary laser system
- Class IIIa, maximum output ≤5 mW
- Established Johnson Level rotary platform
- Kit format for site layout tasks
- Known brand in construction departments
- Rotary format suited to elevation transfer
- Self-leveling design for faster setup
- Useful alternative when Topcon stock is scarce
- Listing details are thinner than modern kits
- Confirm receiver/tripod contents before buying
- Red visibility outdoors still needs a detector
As a best laser level for groundworks option from a long-standing level brand, the 40-6517 follows the rotary-plus-detector logic that drainage and pad work demand. Class IIIa output under 5 mW is typical for this class. Always confirm whether your current ASIN includes a receiver, rod, and tripod—bundle contents change over product life cycles.
Confirm whether your ASIN includes a receiver, rod, and tripod—Johnson bundles change over time. If the kit in hand has a working detector and solid mount, you can transfer elevations for sheds, slabs, and yard grades. For engineered drainage with tight published specs, prefer the Topcon kits above.
Verify the box
Screenshot the included-items list at purchase time so returns are simpler if the kit arrives incomplete.
We earn a commission, at no additional cost to you.
9. Klein Tools 93CPLG
The Klein 93CPLG is not the best laser level for grading and drainage on open dirt, and that honesty is why it is useful here. This compact green 360° laser level earns a slot as a check tool near foundations, porches, and garage slabs after rough grade is set. Its 4.5 rating reflects remodel strength.
- Three bright green 360° planes
- Projects up to about 100 feet
- 6+ hour rechargeable runtime
- IP54 overmold housing
- Excellent compact Klein build quality
- Bright green planes for porch and garage work
- Magnetic mount speeds steel setups
- Light enough for punch-list bags
- Not a dirt-work rotary with long detector range
- IP54 is weaker than IP66 site rotaries
- No grade rod workflow out of the box
Use it after a rotary establishes the site, when you need bright planes for doors, flashing lines, or interior transitions tied to outdoor elevations. About 100 feet of indoor projection and IP54 sealing suit punch lists, not sunlit acre grading. Think companion tool, not primary groundworks instrument.
Three green planes help square a mudroom or threshold while a rotary handles the yard drain outside. Do not expect pulse-mode acreage coverage or a grade-rod workflow from this listing. Add it when grading projects regularly turn into structure finishes; skip it if your budget funds only one dirt-first rotary.
Pairing suggestion
Pair a Topcon or green rotary for the yard with the 93CPLG for the building. One tool rarely excels at both.
We earn a commission, at no additional cost to you.
10. Motovera 100 ft Green Cross Line
Include the Motovera only as a cautionary final pick: it is rarely the best laser level for dirt work or open drainage runs. This green cross-line laser level with tripod suits picture hanging and light DIY, not acre grading. Its 4.3 rating is fair for indoor tasks, not for machine-cut elevations.
- Green cross-line ~100 ft indoor
- Self-level ±4°; manual tilt mode
- Pulse mode for optional receiver
- Aluminum tripod included
- Affordable entry with tripod in the box
- Pulse mode available if you add a receiver
- Fine for small, shaded elevation checks
- Easy learning tool before buying a rotary
- Cross-line geometry is weak for site grading
- No serious outdoor diameter without buying more gear
- IP54 and light tripod are not excavating-ready
Pulse mode hints at outdoor potential, but you still need a compatible receiver and realistic expectations about range. For leveling ground across a yard, a rotating laser with a rod-mounted detector remains the proper best laser level for grading pattern. Motovera can teach self-leveling habits on a patio in shade.
It can teach self-leveling habits on a shaded patio or short retaining-wall check, but noon sun and long sight lines expose its limits fast. IP54 sealing and a light DIY tripod are the wrong match for excavating edges. If standing water is the problem, fund a receiver-ready rotary from the Top 3 instead.
Bottom line on Motovera for grading
Useful teacher, poor primary. Upgrade to a rotary with receiver and grade rod before you dig a long-term drain.
We earn a commission, at no additional cost to you.
Buying Guide — How to Choose a Laser Level for Grading and Drainage
The best laser level for grading and drainage is the one that keeps water and soil where the plan says they belong. Ignore indoor tile feature lists unless your project truly mixes structure layout with yard work. Use the factors below to match range, slope needs, and kit completeness to your dirt.
Rotary beam vs line laser for dirt work
A rotating laser creates a continuous horizontal or sloped reference that a receiver can chase around a site. That is the core workflow for pads, swales, and trench inverts. Cross-line and 360° line lasers excel indoors and in shade, but they are not automatic replacements for a grade-rod detector on open ground.
If your main job is leveling ground and setting drainage fall outdoors, prioritize a rotary with a receiver. Keep line lasers as companions for the building that follows the grade.
Working range: diameter claims and real yards
Listings often advertise diameter—2,000 ft, 2,300 ft, 2,600 ft—which is full-circle coverage under good conditions with a detector. Useful range shrinks when terrain rolls, equipment blocks the beam, or batteries sag. Residential lots rarely need the maximum claim; long driveway drains and acreage do.
Buy more range than your longest sight line, then practice walking the receiver without losing the plane. Maximum marketing range is not a promise you will see the beam with your eyes in sunlight.
Accuracy, fall, and slope matching
Drainage is math: a small angular error becomes a puddle at the end of a long run. Tighter specs like ±1/16 inch at 100 feet leave more margin than ±1/8 inch kits. Slope-matching models help when you tilt a single axis for a drain run, but you still verify rise over run with a tape.
For critical inverts, set control hubs, check them twice, and cut conservatively. No consumer laser replaces an engineered grade stakeout when the project requires one.
Receiver, grade rod, and tripod quality
The laser head is only one third of the system. A clamp-on receiver, a readable grade rod, and a stiff 5/8-inch tripod decide whether elevations stay trustworthy while machines move. Kits that include all three reduce day-one friction for landscapers and homeowners.
Seat tripod feet firmly, keep the rod plumb, and never leave the laser in a loader’s path where a bump is inevitable.
Weather sealing and disturbance alerts
Dirt work is wet and dusty. IP66-rated rotaries tolerate rain and dust better than IP54 indoor lasers. H.I. alerts and impact sensing matter because a shifted instrument height silently ruins a morning of cut stakes.
If your laser lacks an alert, recheck a known hub after any vibration, wind gust, or accidental kick before you keep marking.
Which kit class matches your grading jobs
Serious excavating and drainage: Topcon RL-H5A kits. Residential dirt work with accessories included: green 2300 ft or 2000 ft red rotary kits. Klein 93RLS suits crews wanting green rotary support. Huepar fits mixed yard-and-structure remodel; Motovera and compact Klein planes are helpers only.
Step up when weekly jobs demand longer range, tighter accuracy, or slope matching—not because a listing photo looks dramatic.
How to Use a Laser Level for Grading, Drainage, and Dirt Work
Pick a stable benchmark away from excavator traffic. Mount the rotary on a survey tripod, power on, and wait for self-leveling to finish. Clamp the receiver to a grade rod, set your zero at the hub, and mark that elevation clearly before anyone cuts.
Walk the site and mark cut or fill at each station while keeping the rod plumb. For drainage, calculate the required fall over the run, then set intermediate targets so water moves toward the outlet—not toward a foundation. If your laser offers single-axis slope matching, apply it deliberately and verify with tape measurements.
When an H.I. or impact alert triggers, stop grading marks and reestablish the benchmark. At day’s end, lock transport modes as required, wipe mud from windows and clamps, and store the head in its case. Recheck accuracy after hard bumps or freezing truck nights before the next critical invert.
Frequently Asked Questions
What is the best laser level for grading and drainage?
For most serious outdoor elevation work, the Topcon RL-H5A with an LS-80 or LS-80X receiver is our Editor’s Choice. It combines long diameter range, tight accuracy, IP66 sealing, and a grading-first workflow. Homeowners wanting tripod and rod included may prefer the green 2300 ft rotary kit.
Can I grade a yard with a green cross-line laser?
Only for tiny, shaded checks—and even then results are limited. Cross-line lasers lack the continuous rotating reference and long detector workflow that dirt work needs. For leveling ground across a real yard, use a rotary with a receiver on a grade rod.
Do I need a grade rod for drainage work?
Yes, if you care about consistent cut and fill. The receiver clamps to the rod so you can read elevations above a datum as you walk the trench or pad. Kits that include a rod save time; otherwise budget for a readable surveying-style rod.
What accuracy do I need for a French drain?
Tighter is better because small errors accumulate over long runs. Topcon’s ±1/16 inch at 100 feet class leaves more margin than ±1/8 inch kits. Regardless of spec, verify fall with measured stations and keep the outlet lower than the high end.
Is a green rotary better than red for outdoor grading?
Green can be easier to spot in mixed light when you glance at the head, but both colors still need a receiver in bright sun. Choose based on kit completeness, accuracy, sealing, and brand support—not color alone.
What does IP66 mean for a grading laser?
IP66 indicates strong dust-tight sealing and resistance to powerful water jets—useful when rain and mud are normal. It does not mean you should submerge the tool. Indoor IP54 lasers are weaker matches for excavating edges.
Should I buy slope matching for drainage projects?
Slope matching helps when you want the laser plane itself to follow a single-axis fall, which is convenient for long drain runs. You can also grade from a level plane using rod math alone. If drainage is weekly work, look closely at the Topcon NiMH slope kit.
Which kit is best if I am new to dirt work?
Start with a complete rotary kit that includes receiver, tripod, and grade rod—such as the green 2300 ft kit or the 2000 ft red rotary kit—then practice on a low-risk pad before a critical drain. Upgrade to Topcon or Klein when weekly use justifies it.
Final Thoughts on the Best Laser Level for Grading and Drainage
If dirt, water, and outdoor elevations define the job, buy like a grader—not like a tile setter. The Topcon RL-H5A with LS-80 is our Editor’s Choice for the best laser level for grading and drainage when range, accuracy, and jobsite toughness matter most. The green 2300 ft rotary is the best complete value bundle, and the Klein 93RLS is the green rotary crew kit.
Match the tool to the trench: Topcon NiMH/LS-80X when slope matching for drains is central, import 2000 ft rotaries when budget and accessories matter, Huepar when yard work blends into structure layout, and compact Klein or Motovera only as secondary check tools. Confirm ASINs on the live listing, and replace YOURTAG-20 with your affiliate tag before publishing.
Start with the Top 3, skim the comparison specs, then read the review that matches your lot size and how often you dig. A careful benchmark habit will do more for drainage success than any single marketing claim on the box.
